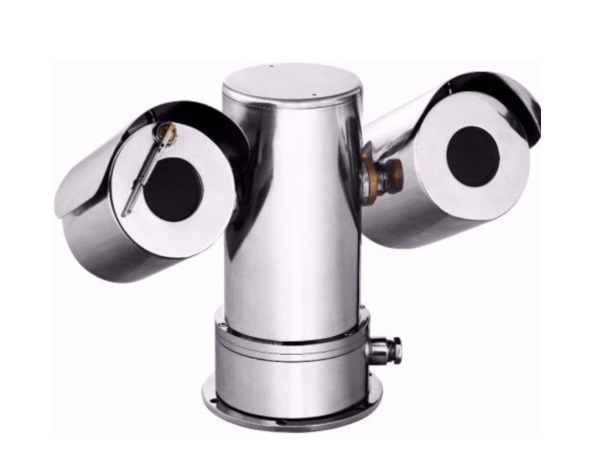

Camera IP chống cháy nổ 2.0 Megapixel HONEYWELL HEIPTZ-2201W-IR
– Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
– Ống kính: 4.7 – 94mm.
– Độ phân giải: 1920 x 1080 pixels.
– Độ nhạy sáng tối thiểu: 0.1 Lux (Color); 0.005 Lux (B/W); 0 Lux (B/W, IR on).
– PTZ: 0 – 360° continuous rotation/-90° ~ 90°/20x.
– Góc quan sát: 55.2°(w) – 2.9°(t).
– Tự động cân chỉnh độ sáng: Auto/Manual.
– Chuẩn nén hình ảnh: H.264 / MJPEG.
– Nhiệt độ hoạt động: -40°C to +60°C.
– Tiêu chuẩn bảo vệ: IP68.
– Nguồn điện: 24V AC, ±25% / 100W max.
– Kết nối: ONVIF, RJ45.
– Chứng nhận: EU: ATEX II 2 GD; Exd IIC T6 Gb, Ex t IIIC T80°C Db.
Thông số kỹ thuật
| Model | HEIPTZ-2201W-IR |
| Operational | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Lens | 4.5 – 135 mm vari-focal motorized lens, 30x |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.1 Lux (Color); 0.005 Lux (B/W); 0 Lux (B/W, IR on) |
| Day/Night | TDN |
| S/N Ratio | ≥ 50dB |
| Shutter Speed | 1 – 1/10000 sec |
| Focal Length | F4.5 – 135mm |
| Aperture Range | F1.6 – F3.5 |
| Wide Dynamic Range | ON/OFF |
| Digital Noise Reduction | High / Mid / Low / Off |
| Video Output | YUV422 (Y8bit + C8bit); TU-R BT, 709; TU-R BT, 1120 compliance |
| Video Standard | PAL, NTSC |
| Automatic Lens Control | Auto focus, Auto Iris |
| Gain Control | Automatic/OFF |
| Angular Field of View | 67.8° (w) – 2.77° (t) |
| White Balance | Auto / Indoor / Outdoor |
| PTZ System | |
| Pan Angle | 0 – 360° continuous rotation |
| Tilt Angle | -90° ~ 90° |
| Pan Speed | 0.01° to 30° /sec variable-speed operation |
| Tilt Speed | 0.01° to 30° /sec variable-speed operation |
| Zoom | 30x optical zoom |
| Scan Speed | Configurable between 0.01° and 30° /sec |
| PTZ Tours (Pattern) | 2 patterns |
| Preset Speed | 30° /sec |
| Preset Positions | 128 |
| Illuminator | Infrared, 80m reachable |
| Video | |
| Video Compression | H.264 / MJPEG |
| Image Resolution | Main stream: 1080P (1920 x 1080), 720P (1280 x 720), Q1080P (960 x 544) Second stream: 720P (1280 x 720), Q1080P (960 x 544), D1 (720 x 576), VGA (640 x 480), Q720P (640 x 360), CIF (352 x 288), QVGA (320 x 240), QCIF (176 x 144) |
| Bit Rate | 16kbps – 8Mbps continuously adjustment; CBR/VBR |
| Supported Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| Security | Password protection, IP address filtering, User access log |
| User | 4 simultaneous unicast users |
| Communication Protocol | ONVIF Profile S |
| Alarm | |
| Alarm Trigger | Intelligent video motion detection |
| Alarm Event | Event server: FTP server, SMTP server, Web browser |
| General | |
| Power Supply | 24V AC, ±25% |
| Power Consumption | 100W max |
| Dimensions | 498 (L) x 310 (W) x 377.5 H(mm) |
| Weight | 31kg |
| Viewing Window | Double-sided Nano filming tempered glass |
| Construction | Stainless steel 316L |
| Mounting | Wall mount, pole mount |
| Operating Temperature | -40° C to + 55° C |
| Protection Class | IP68 waterproof |
| Certification | CNEX, ATEX, IECEx, CCOE, CE, FCC |
– Bảo hành: 24 tháng.
